OLR Series M2000

Sensor platform for mineral slurries

Designed for the harsh environment of the resources industry the M2000 provides precise performance with minimal maintenance needs. Can be configured for indexing yield stress or measuring the viscosity without the need for time-consuming, error-prone, and often dangerous sampling and sample- handling processes. Comprehensive software suite included.

Learn More

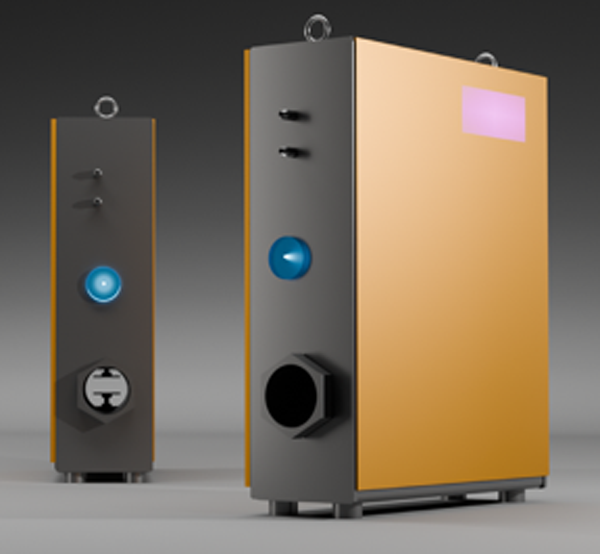

olr m2000 1

Features

  • Ruggedized for challenging
    operations environment
  • Application specific flow cells
  • Indexing of Yield Stress and measuring Viscosity
  • Temperature sensing optional
  • Standalone software standard
  • MODBUS based communication
    with PLC

APPLICATION AREAS

  • Mining and Mineral Processing
    (eg, Concentrated slurry,
    Underflow, and Backfill rheology)
  • Water and Waster Water Sludge
  • Upstream Oil and Gas (eg: Drilling
    Mud and Fracking Liquid Rheology

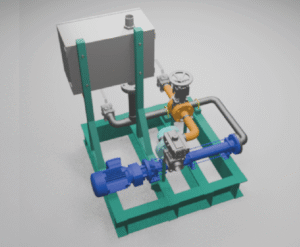

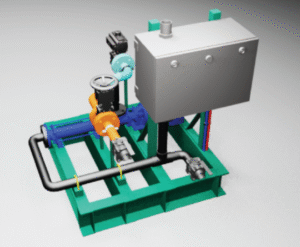

MODULAR SKID-BASED SOLUTIONS

The M2000 can be used as a part of a skid where flow modulation becomes necessary to access the fluid properties of interest. Fully automated and semi-automated skid with integrated wash cycles are available for additional flexibilty.

Software (SOLR)

SOLR provides flexibility – you determine from the drop down menu what you continuously measure, plot and report.

The OLR is used in conjunction with custom developed software specific for the sensor system. The SOLR has three key functions:

  • Set up of process monitoring and quality control parameters
  • Monitoring and control of process either through SOLR or through the plant PLC
  • Out-of-specification product diagnosis

technical specifications

Frequency range1 – 100 Hz
Viscosity measuring range0.25 – 200,000 Pa.s
Force range0 – 44.48 N
Pressure range0.05 – 30 Bar a
Temperature measurementRTD PT100 Ohm, Class A

Learn More

Download Brochure

GALLERY

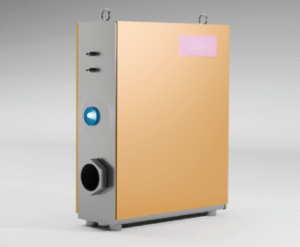

olr m2000 images 01
olr m2000 images 03
olr m2000 images 02

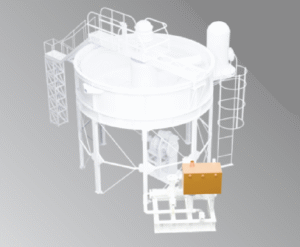

olr m2000 images 04

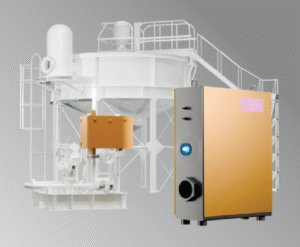

olr m2000 images 05

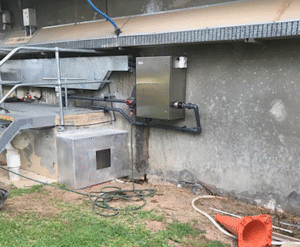

olr m2000 images 08

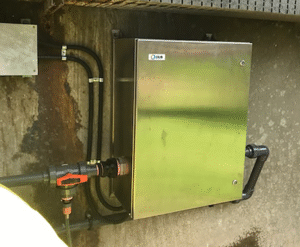

olr m2000 images 09

PUBLICATIONS

Sofra & Bhattacharjee, “Online yield stress measurement for real-time process control” in Paste 2021
– AB Fourie & D Reid (eds), Australian Centre for Geomechanics, Perth, pp 119-129

T.J. Kealy, P. K. Bhattacharjee, P. Griffin; “Assessment of on-line rheology as a control tool for thickened tails”,
in Proc. 20th International Seminar on Paste and Thickened Tailings, University of Science and Technology Beijing

APPLICATION NOTES

Real-time Rheology for Preventing Gearbox Damage in Clarifiers Processing Bluegreen Algal Sludge
